INMOVILIZADORES DE ANIMALES

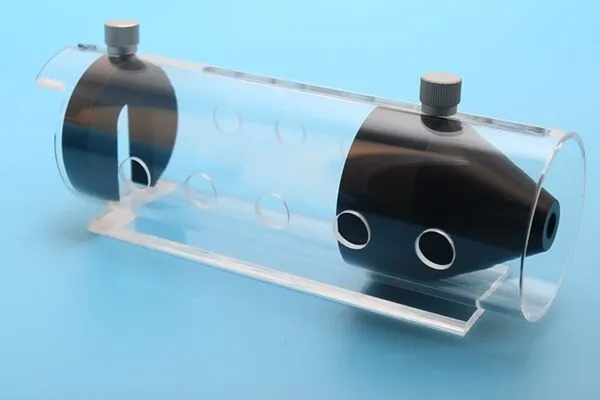

Inmovilizador tubular para animales, RWD Life Science

Se utiliza para impedir que el animal gire o se mueva fijándolo en la parte trasera y regulado de manera flexible, para reducir las lesiones causadas por los movimientos del animal. El diseño único del fijador de punta cónica proporciona un fácil acceso para los animales y, al mismo tiempo, les ayuda a sentirse seguros. Además, un respiradero situado en el retenedor nasal también ayuda al animal a respirar mejor. La cola puede estirarse y ayudar al animal a permanecer quieto durante más de 1 hora.

Aplicaciones:

  • Mediciones conscientes de la presión arterial no invasiva en animales
  • Muestreo de sangre de cola
  • Infusión intravenosa
  • Inyección subcutánea o intracutánea de la raíz de la cola
  • Observación del comportamiento animal, etc.

CATÁLOGO

DESCRIPCIÓN

9131

Soporte mediano para ratón de 15 a 40 g/L110×I.D.20 mm

9132

Soporte mediano para ratón de 15 a 40 g/L135×I.D.30 mm

9133

Soporte grande para ratón de 50-75 g/L160×I.D.40 mm

9134

Soporte pequeño para ratas de 75-200 g/L200×I.D.50 mm

9135

Soporte mediano para ratas de 200-300 g/L210×I.D.60 mm

9136

Soporte grande para ratas de 300 a 500 g/largo 220 x diámetro interior 70 mm

9137

Soporte extra grande para ratas de más de 500 g/L230×I.D.80 mm

PARA SOLICITAR PRECIO SELECCIONE EL PRODUCTO DE SU INTERÉS Y DESPUÉS DAR CLICK EN EL BOTÓN COTIZAR

MX$0.00

Inmovilizador Cónico RWD Life Science 9138

Es un nuevo diseño de herramienta fija para inyección en animales, adecuado para inyección por lotes rápida y eficiente, y tiene las características de transparente, duradero, fácil de limpiar y estable.

Aplicaciones:

  • Mediciones conscientes de la presión arterial no invasiva en animales
  • Muestreo de sangre de cola
  • Infusión intravenosa
  • Inyección subcutánea o intracutánea de la raíz de la cola
  • Observación del comportamiento animal, etc.

MX$0.00

Animal Holders

IBI Animal Restraint products are designed to hold mice and rats, keeping both user and animal safe and secure. Five different sizes of restraints ensure that no matter the size of your animals, IBI probably has a device to fit them.

IBI also manufactures stands to hold the restraints at a 45 degree angle to allow easy access to tails or other areas of the animal.



Mouse Restraints

Resultado de imagen para MH-125 IBI

IBI offers two different size mouse restraints to meet the needs of your lab rodents.
If you exceptionally large mice, our MH-200 small rat holder may be just the size for your animals.
IBI mouse restraints are made of cast acrylic to provide years of service.
Customers told us they always lose the nose piece and thumb screw, that’s why we made it a replacement part!
Quality, convenience and service. IBI



Rat Restraints

IBI offers three different size rat holders to accommodate the range of rodent sizes in your lab.
These products are made of cast acrylic and will provide years of service.
Customers told us they always lose the nose piece and thumb screw…That’s why we made it a replacement part!
Quality, convenience and service, IBI.

Inmovilizadores de fondo plano para Roedores, Marca TED PELLA

Estos cómodos dispositivos de sujeción han sido un estándar de investigación durante más de veinticinco años. La contrapunta ajustable se puede insertar en cualquiera de las cuatro posiciones. Las aberturas en la parte superior e inferior brindan fácil acceso para inyecciones o muestreos. El bolsillo y los orificios en la parte delantera facilitan la anestesia o la alimentación del animal.Prod #

Prod #

Description

Animal Weight Range

28001-3

Rodent Flat Restrainer 38.1 x 95.25mm (1.5" dia. x 3.75")

15 to 30g

28001-4

Rodent Flat Restrainer 50.8 x 127mm (2" dia. x 5")

30 to 125g

28001-5

Rodent Flat Restrainer 63.5 x 152.4mm (2.5" dia. x 6")

125 to 250g

28001-6

Rodent Flat Restrainer 114 x 28mm (3.25" dia. x 8.5")

250 to 500g

PARA SOLICITAR PRECIO SELECCIONE EL PRODUCTO DE SU INTERÉS Y DESPUÉS DAR CLICK EN EL BOTÓN COTIZAR

MX$0.00

Sujetadores Broome, Marca TED PELLA

Son el estilo más eficaz disponible por tres razones básicas:

  • Facilidad de uso y acceso al roedor.
  • Impide que el animal pueda girar.
  • Seguridad para el cuidador de animales

Prod #

Description

28003

Broome Restrainer, 25.4 x 85.72mm (1" dia. x 3.38")

28003-1

Broome Restrainer, 31.75 x 114.3mm (1.25" dia x 4.5")

28003-2

Broome Restrainer, 38.1 x 139.7mm (1.5" dia. x 5.5")

28003-3

Broome Restrainer, 50.8 x 203.2mm (2" dia. x 8")

28003-4

Broome Restrainer, 63.5 x 215.9mm (2.5" dia. x 8.5")

PARA SOLICITAR PRECIO SELECCIONE EL PRODUCTO DE SU INTERÉS Y DESPUÉS DAR CLICK EN EL BOTÓN COTIZAR

MX$0.00

Inmovilidador de ratas Zucker dimensiones: 88.9mm diameter x 228.6mm long, Marca TED PELLA 28004

Es una unidad especial estilo Broome modificada para estudios de obesidad en ratas adultas obesas de 500 a 800 g.

MX$0.00



Rodent Injection Cone / Illuminated Rodent Injection Cone

  28005 28005-1
  #28005 #28005-1

The Rodent Injection Cone allows the researcher to isolate the rodent tail from the body allowing easy and safe access to the tail.

The Illuminated Rodent Tail Vein Injection Cone features a "bright light" illumination system to easily locate the veins in the tail. Included are rechargeable batteries and recharge unit, a white base housing batteries, on/off switch, and plug for recharging batteries.

Features

Rodent Injection Cone:

  • Clear plastic tail insertion cone
  • Clear base with suction cups to prevent movement

Illuminated Rodent Injection Cone:

  • Clear plastic tail insertion cone
  • Formed white base housing batteries, on / off switch, and illumination window with light
  • Base used for recharging batteries (two included)
  • Electrical plug for recharging batteries (100 to 240 VAC capacity)

Specifications

Rodent Injection Cone and Illuminated Rodent Injection Cone:

  • Cone dimensions: 146 x 127 x 101.6mm (5.75 long x 5 high x 4") opening
  • Total footprint size: 216 x 254mm (8.5 x 10")
  • Light bulb warranty: 30,000 hours
  • Weight range, mice: 15 to 30 grams
  • Weight range, rats: 500 to 600 grams

Prod #

Description

28005

Rodent Injection Cone

28005-1

Illuminated Rodent Injection Cone



Rodent Containment System
& “J” Feeder with Bracket

  28007 feeding system
  #28007, 28007-1, 28007-2 #28007-2

This is the only available unit which can be used as a free flow or sealed system. The chamber may be used as an open or closed system. If an open system (free flow of air) is desired, align the holes on the top cone with the main clear cylinder. If not, misalign the holes to affect the closed system. Once misaligned, simply tape the top and the bottom to the main cylinder.

Accommodates mice, rats, gerbils, hamsters, and guinea pig sized animals. This inexpensive containment system is extremely useful for acute or chronic studies.

All rodent restrainers are manufactured from clear materials to provide complete visual awareness of the state of your animal.

Features

  • Two molded convex cones
  • One molded concave top for alternative watering technique
  • Clear cylindrical main housing
  • Stainless steel floor grid
  • Fecal/urinary separator
  • Metal tripod stand
  • Two gas nipples (1/8 x 1/4 NPT hose barb style)
  • One roll of vinyl sealant tape

Applications

  • Metabolism studies
  • C02 collection
  • Inhalation work
  • Euthanasia chamber
  • Isolation requirements
  • Anesthesia techniques

Prod #

Description

28007

Rodent Containment System @ 7.5 Liter

28007-1

Rodent Containment System @ 13.5 Liter

28007-2

“J” Feeder with Bracket for Containment System



Ferret Restrainers

28006
#28006 through #28006-4

These restrainers are offered in four sizes taking into consideration the animals age, weight, and sex. The units are constructed of optical quality clear acrylic (Perspex™), and a formed black plastic nose cone with an Acetal™ locking slide. The main restraining cylinder can be rotated 360° to provide complete access to the animal. All units are mounted on a white acrylic base plate with suction cup feet to guarantee reliable stability during testing procedures. Counter top space required is 11.5 x 21".



Prod #

Description

28006

Ferret Restrainers, Set of all 4 units

28006-1

Ferret Restrainer, 2.5" ID x 18" L

28006-2

Ferret Restrainer, 3" ID x 18" L

28006-3

Ferret Restrainer, 3.5" ID x 18" L

28006-4

Ferret Restrainer, 4" ID x 18" L



Bowman Post Operation Rodent Restrainer

28001-2
#28001-2

The Bowman Style Rodent Restrainer has been re-engineered and refined to accommodate larger sized animals up to 750 grams. The positions of the stainless steel rods around the rodent provide easy access for many types of research applications, especially obesity studies.

The rodent can quickly be inserted into the restrainer by removing several stainless steel upper rods, or through an access port hole in the rear upright. The access port hole features a polycarbonate locking door to prevent escape.

The front "guillotine" door can be adjusted and locked by using any one of three adjustment positions. The door has stainless steel "spring loaded" lock. Suction cup feet on the white plastic base secure the device during use.

Features

  • Weight range from 250 up to 750 grams
  • Maximum length of the rodent compartment is 228mm (9")
  • Eighteen stainless steel rods are adjustable up to 89mm (3.5")
  • Rear access port opening is 50.88mm (2"). The polycarbonate locking door is attached by a "Nylock" fastener to prevent future operational loss
  • Overall height is 279mm (11")
  • Base size is 254mm x 305mm (10 x 12")
  • Basic unit is constructed of 12.7mm (0.5") jeweled acrylic



Prod #

Description

28001-2

Bowman Post Operative Rodent Restrainer



Rabbit Restrainers

28000 28000-1 28000-2
#28000 #28000-1 #28000-2

Clear acrylic restrainers provide total observation of your research animal and safe handling while working with your laboratory animals. These restrainers were developed under research conditions. The clear acrylic materials protect and safeguard your research animals. These restrainers help eliminate or minimize back injuries from uncontrolled kicking of the back legs.

Features

  • Highly polished edges prevent chafing, especially at the neck.
  • Non-slip surface provides better footing and helps to calm animal.
  • The clear acrylic aids in retaining body warmth, eliminating hypothermia
  • Unique curved back butt plate minimizes the risk of back injury. The plate is anatomically correct.
  • Vertical head bars (adjustable).
  • Rear access hole for pyrogen testing (N/A on #28000).
  • Stainless steel pin offers several fine adjustment points for neck plate.
  • Unit can be sanitized in a cage washer up to 180°C (82°F) or sterilized chemically.
  • Non-slip base pads ensure unit stability.

Prod #

Description

Dimensions

Animal Weight Range

28000

Rabbit Restrainer, up to 7.5kg (16.53lb)

150 x 610 x 130mm (6 x 24 x 5")

up to 7.5kg (16.53lb)

28000-1

Rabbit Restrainer, up to 4kg (8.82lb)

150 x 450 x 150mm (6 x 18 x 6")

up to 4kg (8.82lb)

28000-2

Rabbit Restrainer, up to 4-7kg (8.82 to 16.53lb)

150 x 560 x 170mm (6 x 22 x 6.5")

4 to 7kg (8.82 to 16.53lb)

Inmovilizador para Cobayas (Puercos de Guinea), Marca TED PELLA

Estos inmovilizadores de acrílico transparente brindan una conciencia visual completa y el estado de su valioso animal. El plástico es cálido al tacto y elimina el problema de la hipotermia. Con cada retenedor se incluyen barras de reposacabezas ajustables, una placa de tope ajustable para el respaldo, un pasador de ajuste de bloqueo de acero inoxidable para el soporte del cuello (tres posiciones) y un soporte para la espalda formado ajustable para minimizar las fracturas de la espalda. También se incluye un material de piso antideslizante para proporcionar una base segura para el animal y calmarlo.



Prod #

Description

Animal Age

Weight Range

28002

Guinea Pig Restrainer, Small 100 x 177.5mm (4 x 7")

5 weeks old

300-350 grams

28002-1

Guinea Pig Restrainer, Medium 111 x 205mm (4.5 x 8")

10 weeks

500-600 grams

28002-2

Guinea Pig Restrainer, Large 117 x 292.1mm (4.5 x 11.5")

Adult

600+ grams



MX$0.00
